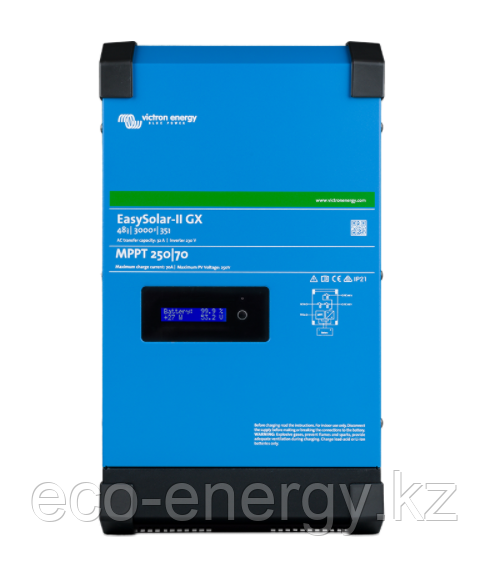

EasySolar-II 24/3000/70-32 MPPT 250/70 GX

The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies
most installations, saving time and money.

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled
device.
In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device
The integrated GX device includes:
• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed
battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a
VE.Bus and a VE.Direct connection.
