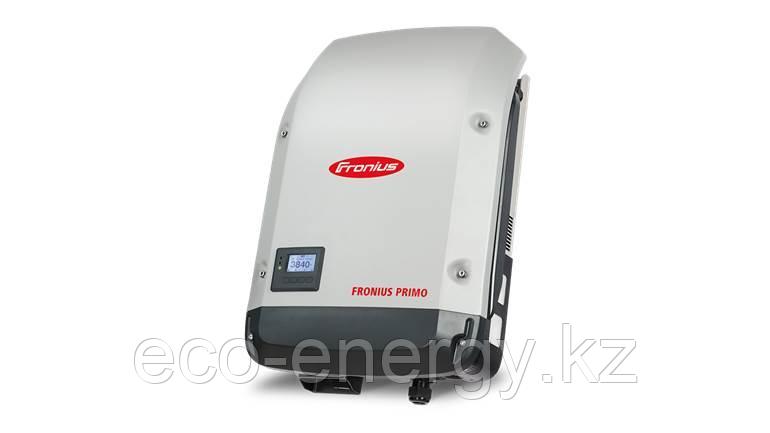

Fronius Primo 3.0‐1 WLAN/LAN/WEBSERV
1 431 000 ₸
Показать оптовые цены- Под заказ
- Оптом и в розницу
- Код: Primo 3.0‐1
Отправка с 17 декабря 2025- +7 (776) 500-91-56Айгерим
- +7 (706) 675-91-57Хаджимухан (солнечные станции)
Однофазные сетевые инверторы Fronius Galvo со встроенным блоком мониторинга для небольших домашних систем.
Интегрированы WLAN, LAN, Webserver
INPUT DATA
|
Number of MPP trackers |
2 |
|---|---|
|
Max. input current (Idc max) |
12 / 12 A |
|
Max. short circuit current, module array |
18 / 18 A |
|
DC input voltage range (Udc min - Udc max) |
80 - 1000 V |
|
Feed-in start voltage (Udc start) |
80 V |
|
Nominal input voltage (Udc,r) |
710 V |
|
MPP voltage range (Umpp min - Umpp max) |
200 - 800 V |
| Usable MPP voltage range | 80 - 800 V |
| Number of DC connections | 2 + 2 |
|
Max. PV generator output (Idc max) |
4,5 kWpeak |
OUTPUT DATA
|
AC nominal output (Pac,r) |
3000 W |
|---|---|
|
Max. output power (Pac max) |
3000 VA |
|
AC output current (Iac nom) |
13 A |
|
Grid connection (Uac,r) |
1~ NPE 220/230 V |
|
AC voltage range (Umin - Umax) |
180 - 270 V |
|
Frequency (fr) |
50 / 60 Hz |
|
Frequency range (fmin - fmax) |
45 - 65 Hz |
|
Total harmonic distortion |
< 5 % |
|
Power factor (cos φac,r) |
0,85 - 1 ind./cap. |
GENERAL DATA
| Height | 645,0 mm |
|---|---|
| Width | 431,0 mm |
| Depth | 204,0 mm |
| Weight | 21,5 kg |
| Degree of protection | IP 65 |
| Protection class | 1 |
|
Overvoltage category (DC / AC) 1) |
2 / 3 |
| Night-time consumption | < 1 W |
| Inverter design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient temperature range | -40°C - +55°C |
| Permitted humidity | 0 - 100 % |
|
Max. altitude 2) |
4.000 m |
| DC connection technology | 4x DC+1 and 4x DC- screw terminals 2.5 - 16 mm² |
| AC connection technology | 3-pin AC screw terminals 2.5 - 16 mm² |
| Certificates and compliance with standards | DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, CEI 0-21, VDE AR N 4105 |
EFFICIENCY
| Max. efficiency (PV - grid) | 98 % |
|---|---|
| European efficiency (ηEU) | 96,1 % |
|
η at 5% Pac,r 3) |
80,8 / 82,5 / 82,5 % |
|
η at 10% Pac,r 3) |
84,1 / 86,5 / 86,1 % |
|
η at 20% Pac,r 3) |
90,3 / 95,5 / 94,8 % |
|
η at 25% Pac,r 3) |
91,8 / 96,4 / 95,1 % |
|
η at 30% Pac,r 3) |
92,7 / 96,9 / 96,0 % |
|
η at 50% Pac,r 3) |
94,5 / 97,4 / 97,0 % |
|
η at 75% Pac,r 3) |
95,4 / 97,9 / 97,7 % |
|
η at 100% Pac,r 3) |
95,7 / 97,9 / 97,8 % |
| MPP adaptation efficiency | > 99,9 % |
PROTECTION DEVICES
| DC insulation measurement | Yes |
|---|---|
| Overload behaviour | Operating point shift, power limitation |
| DC disconnector | Yes |
| Reverse polarity protection | Yes |
INTERFACES
| WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|---|---|
| 6 inputs and 4 digital inputs/outputs | Interface to ripple control receiver |
|
USB (type A socket) 4) |
Data logging, inverter update via USB flash drive |
|
2x RS422 (RJ45 socket) 4) |
Fronius Solar Net |
|
Signalling output 4) |
Energy management (floating relay output) |
| Datalogger and web server | Integrated |
|
External input 4) |
S0 meter connection / Evaluation of overvoltage protection |
| RS485 | Modbus RTU SunSpec or meter connection |
FOOTNOTES FOR TECHNICAL DATA
1) According to IEC 62109-1.
2) Unrestricted voltage range.
3) And at Umpp min / Udc,r / Umpp max.
4) Also available in the light version
| Основные | |
|---|---|
| Производитель | Fronius |
| Страна производитель | Австрия |
| Количество контроллеров | 2 шт |
| Мощность | 3 кВт |
| Мощность инверторов | 3 кВт |
| Напряжение станции | 220 В |
| Срок службы | 50 лет |
| Тип солнечной электростанции | Электростанция на фотобатареях |
- Цена: 1 431 000 ₸
