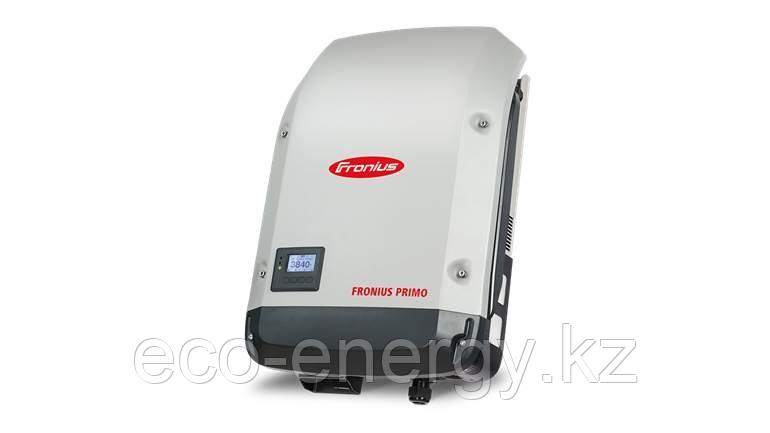

Fronius Primo 6.0‐1 WLAN/LAN/WEBSERV
1 658 000 ₸
Показать оптовые цены- Под заказ
- Оптом и в розницу
- Код: Primo 6.0‐1
- +7 (707) 750-91-57Айгерим
TECHNICAL DATA
INPUT DATA
Number of MPP trackers |
2 |
---|---|
Max. input current (Idc max) |
18 / 18 A |
Max. short circuit current, module array |
27 / 27 A |
DC input voltage range (Udc min - Udc max) |
80 - 1000 V |
Feed-in start voltage (Udc start) |
80 V |
Nominal input voltage (Udc,r) |
710 V |
MPP voltage range (Umpp min - Umpp max) |
240 - 800 V |
Usable MPP voltage range | 80 - 800 V |
Number of DC connections | 2 + 2 |
Max. PV generator output (Idc max) |
9 kWpeak |
OUTPUT DATA
AC nominal output (Pac,r) |
6000 W |
---|---|
Max. output power (Pac max) |
6000 VA |
AC output current (Iac nom) |
26,1 A |
Grid connection (Uac,r) |
1~ NPE 220/230 V |
AC voltage range (Umin - Umax) |
180 - 270 V |
Frequency (fr) |
50 / 60 Hz |
Frequency range (fmin - fmax) |
45 - 65 Hz |
Total harmonic distortion |
< 5 % |
Power factor (cos φac,r) |
0,85 - 1 ind./cap. |
GENERAL DATA
Height | 645,0 mm |
---|---|
Width | 431,0 mm |
Depth | 204,0 mm |
Weight | 21,5 kg |
Degree of protection | IP 65 |
Protection class | 1 |
Overvoltage category (DC / AC) 1) |
2 / 3 |
Night-time consumption | < 1 W |
Inverter design | Transformerless |
Cooling | Regulated air cooling |
Installation | Indoors and outdoors |
Ambient temperature range | -40°C - +55°C |
Permitted humidity | 0 - 100 % |
Max. altitude 2) |
4.000 m |
DC connection technology | 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² |
AC connection technology | 3-pin AC screw terminals 2.5 - 16 mm² |
Certificates and compliance with standards | DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, CEI 0-21, VDE AR N 4105 |
EFFICIENCY
Max. efficiency (PV - grid) | 98,1 % |
---|---|
European efficiency (ηEU) | 97,3 % |
η at 5% Pac,r 3) |
84,6 / 86,5 / 86,0 % |
η at 10% Pac,r 3) |
90,5 / 95,5 / 94,6 % |
η at 20% Pac,r 3) |
94,0 / 97,2 / 96,8 % |
η at 25% Pac,r 3) |
94,7 / 97,4 / 97,0 % |
η at 30% Pac,r 3) |
95,1 / 97,6 / 97,3 % |
η at 50% Pac,r 3) |
96,0 / 97,9 / 97,8 % |
η at 75% Pac,r 3) |
96,2 / 98,0 / 98,0 % |
η at 100% Pac,r 3) |
96,2 / 98,0 / 97,9 % |
MPP adaptation efficiency | > 99,9 % |
PROTECTION DEVICES
DC insulation measurement | Yes |
---|---|
Overload behaviour | Operating point shift, power limitation |
DC disconnector | Yes |
Reverse polarity protection | Yes |
INTERFACES
WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
---|---|
6 inputs and 4 digital inputs/outputs | Interface to ripple control receiver |
USB (type A socket) 4) |
Data logging, inverter update via USB flash drive |
2x RS422 (RJ45 socket) 4) |
Fronius Solar Net |
Signalling output 4) |
Energy management (floating relay output) |
Datalogger and web server | Integrated |
External input 4) |
S0 meter connection / Evaluation of overvoltage protection |
RS485 | Modbus RTU SunSpec or meter connection |
Основные | |
---|---|
Мощность | 6 кВт |
Производитель | Fronius |
Страна производитель | Австрия |
Тип солнечной электростанции | Электростанция на фотобатареях |
Напряжение станции | 220 В |
Мощность инверторов | 6 кВт |
Количество контроллеров | 2 шт |
Срок службы | 50 лет |
- Цена: 1 658 000 ₸
